High grade 16mm mini rocker with LED - green

These very high grade mini rockers have a nice soft action and a superbright LED in the rocker. They are dual pole, single throw, with the LED wired across the two middle terminals, so they can be wired with the LED on all the time, or only on when the switch is on.

These come with a nice wiring harness with 150mm long leads.

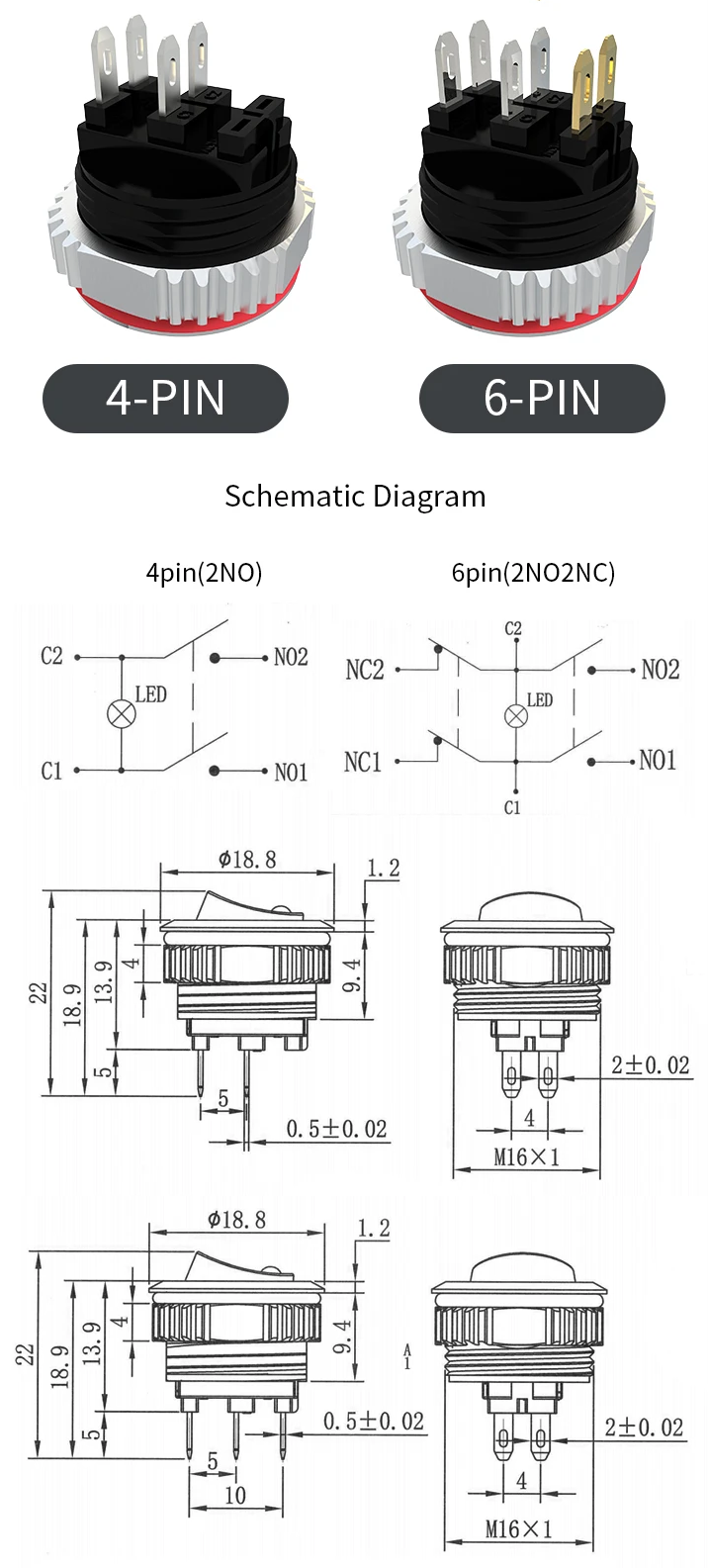

This is the 4-pin version.

Specifications
LED voltage 5-24V non polarised
Rated current: 7A
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000MΩ
Shell material: Aluminium/flame retardant plastic
Rocker colour: Black
Electrical Life: 100,000 operations
Panel Thickness: ≤7.5mm
