LED parking radar bargraph and distance display

These are used in parking radars and similar, and combine a two-digit 7-segment red 0.36" display with a multi-coloured bargraph each side. The bargraph has red, yellow and green LEDs (3 x green, 2 x yellow and 2 x red as you go from outside to inside). Each section has its own common anode, and the cathodes are connected to the other pins, as per the table below.

Forward voltage is around 1.8-2.2V per segment, recommended forward current is 10-15mA per segment.

A neat little display for experimentation, part number 6614BRYG-3.

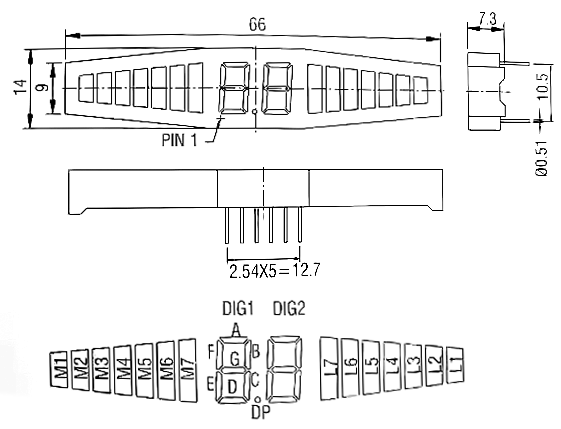

Pin	Digit 1	Digit 2	Right bargraph	Left bargraph
11	Anode
5		Anode
6			Anode
12				Anode
4	A	A	L1	M1
10	B	B	L2	M2
9	C	C	L3	M3
1	D	D	L4	M4
8	E	E	L5	M5
7	F	F	L6	M6
2	G	G	L7	M7
3	DP
