60V, 900mA DC boost driver

This neat little driver will step up any voltage between 5 and 32V to boost a string of LEDs or LED array at a 900mA fixed current.

Maximum output voltage is 60V, while maximum input current is 5A.

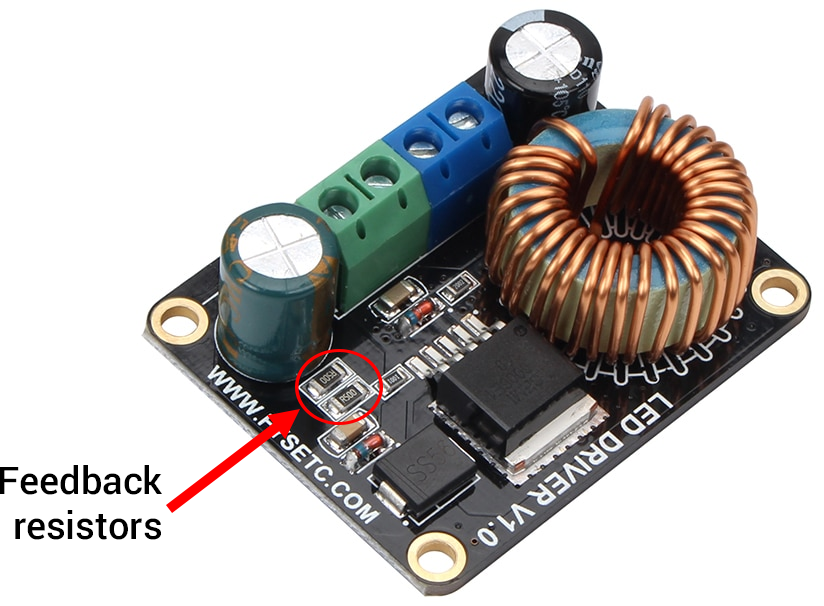

The module uses the XL6006 boost driver IC, which has a feedback voltage of 0.22V, so you can just change the feedback resistors on the PCB (marked on the image, they are paralleled) to set the driver to other currents.

Specs
Input voltage: 5 to 32V DC
Output voltage: Input voltage to 60V
Output current: 900mA (adjustable with resistor change. Iout=0.22/Rfb)
Maximum input current: 5A
Dimensions: 48 x 38.5mm
